Description

Application

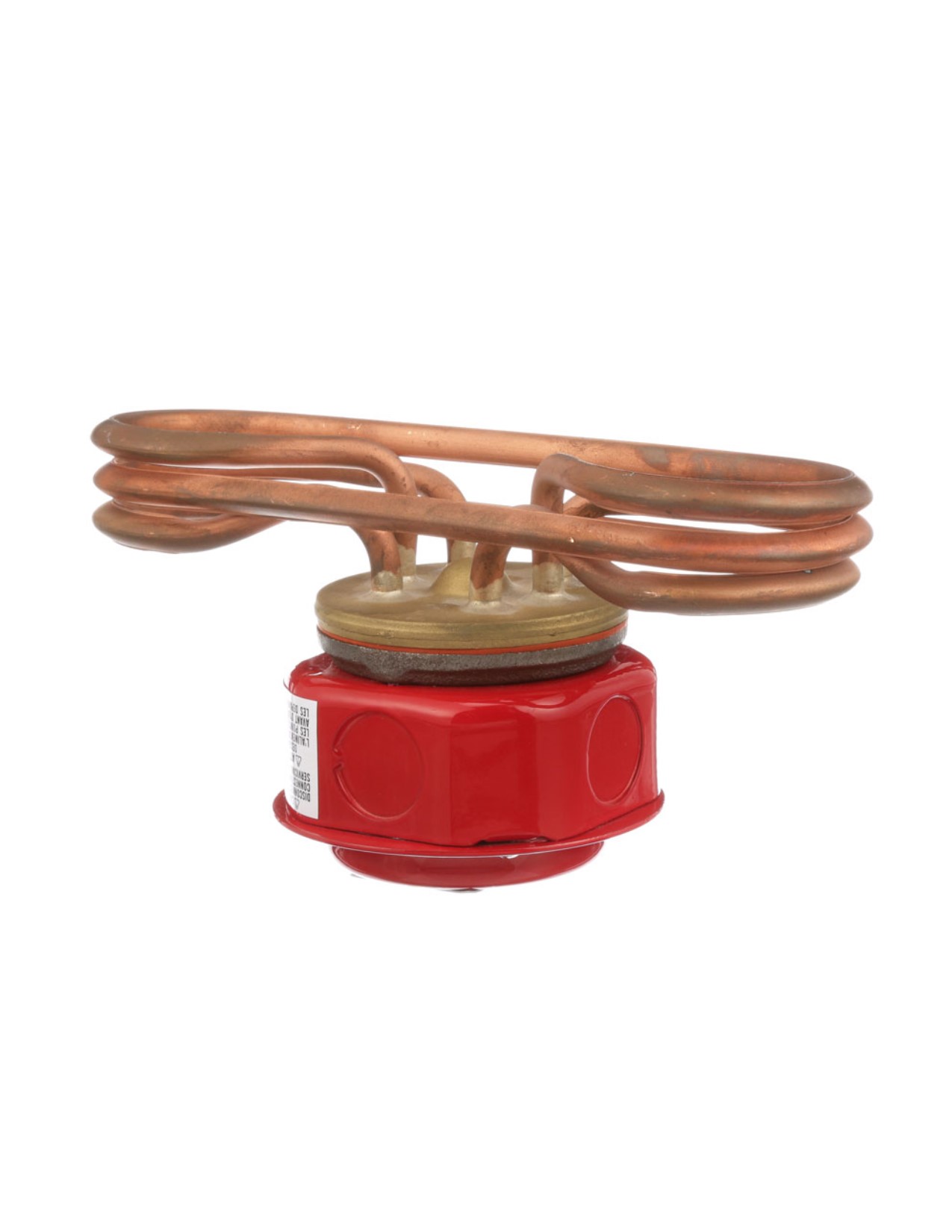

Type TX immersion heaters are intended for use in steam tables, coffee urns, kettles, sterlizers, percolators and many other water heating applications where bottom-mount heater is most practical.

The heaters are not guanteed against corrosion since the manufacturer has no control over the liquid type, concentration or temperature.

Heaters must be kept free of heavy scale build-up to prolong life. Most importantly, the heating elements must be fully immersed in liquid during operation.

Other part compaitable part numbers

UC4023, UA4023, TTUH-40R, 34-1253

Installation

After removal of the terminal box and the mounting ring, the heater is inserted from the inside of the tank. a 2 7/16″ (62mm) diameter opening in the vessel (which is normally of thin walled construction) is required to receive the brass mounting flange.
