45kw / 480v / 3ph / 15.5″L (300537H)
Original price was: $702.45.$639.71Current price is: $639.71.
Did you like this product? Add to favorites now and follow the product.
Description

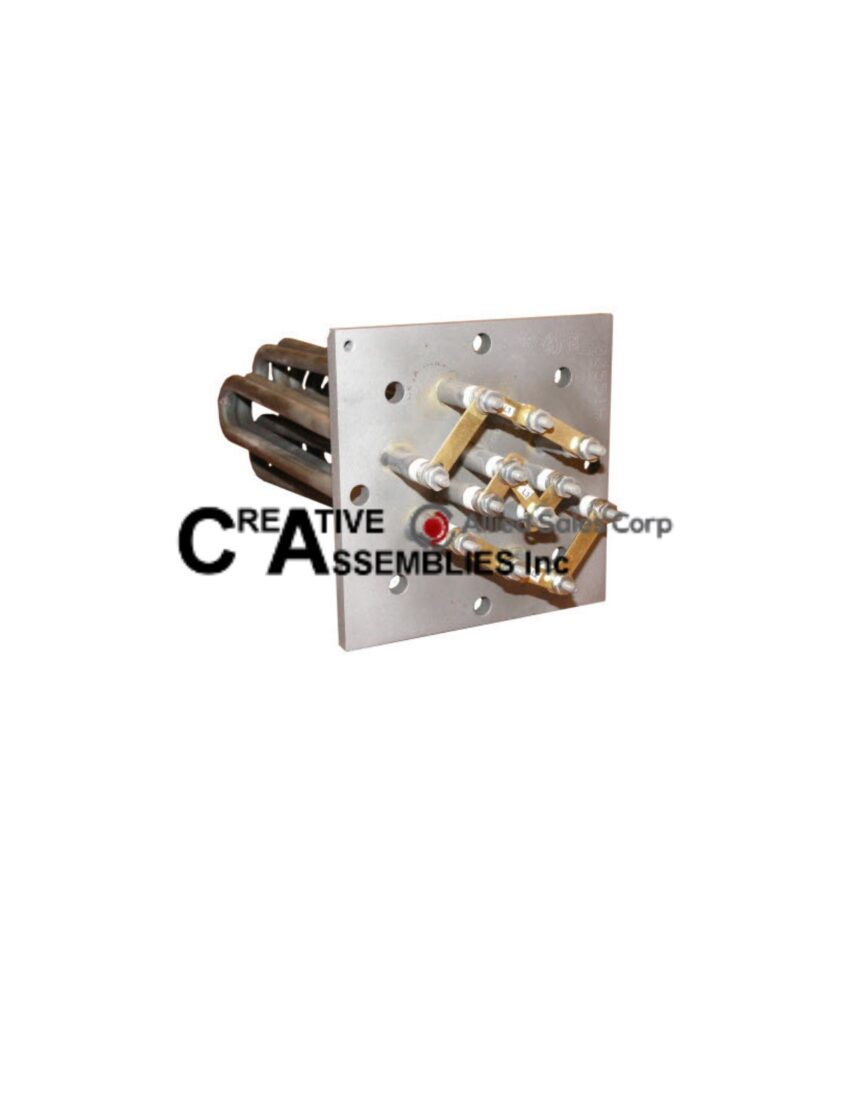

Eichenauer’s UL listed flanged immersion heater can be used as replacement parts for boilers, steam generators, sterilizers, autoclaves, etc.
***PLEASE NOTE: 6 MONTH WARRANTY FROM PURCHASE DATE FOR ALL FLANGED IMMERSION HEATERS****
- Eichenauer 300537H Gasket 52546 (1 Included)
UL Designation: 950-30-11
| FLANGE | 5 ¾ sq |
|---|---|
| VOLTAGE | 480v |
| KW | 45 |
| PHASE | 3 |
| SHEATH | SS |
| NO. OF ELEMENTS | 6 |
| TERMINAL PINS | # 10-32 |
| IMMER. LENGTH | 15.5 |
| WATT DENSITY | 93 W/in² |
| ORDER NUMBER | 51A-1011-01 |
Flange
Thickness: 0.375
Mounting: 8 x 0.375 holes on a 5 Dia B.C.
These are commonly used as replacements for Sussman, Electrosteam and many other boilers.
Steris / Chromalox series CESD Series 180, CH14 (uses 4 heaters total 4×45)
155-300506-023, P-764323-427, P-764333-914,
P764323427 , P764333914 , 155300506023
APPLICATIONS:
- Process Steam
- Air Humidification
- Dry Cleaning
- Food Service
- Laboratories
- Breweries
- Process Heating
- Shrink Wrap Labels
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 21 × 6 × 6 in |
| Wattage | 30 |
| Voltage | 208 |
| Phase | Three |
| Sheath | SS |
| Immersion Length | 10.375 |
| NO. of Rods | 6 |
| Watt Density | 95 |
| Cross Reference | 155-300506-005, P764323418, P764334077 |
| Order Number | 51A-1010-04 |
