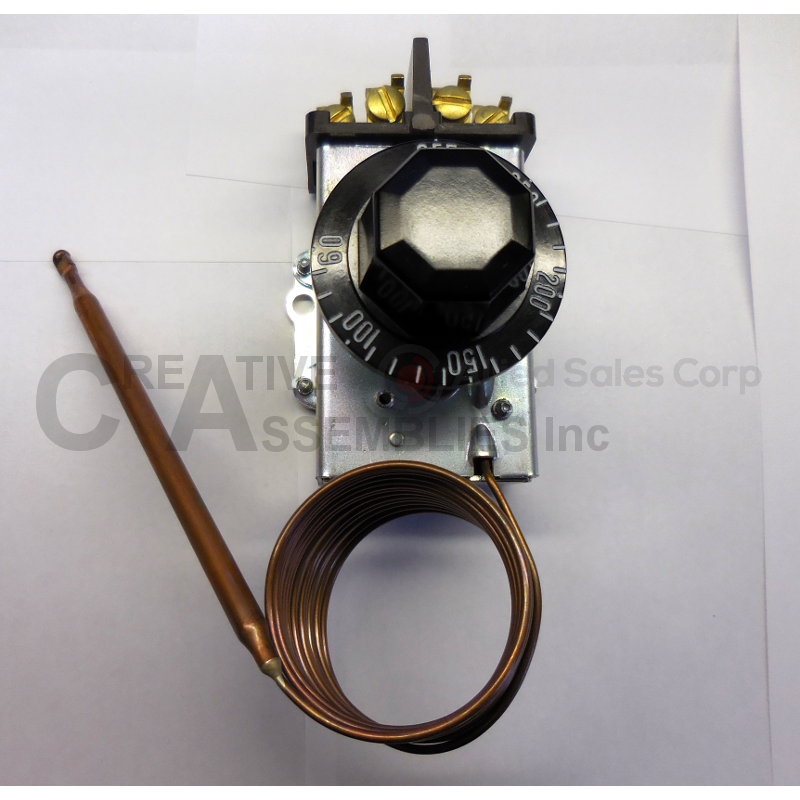

D1-2574-K 60-250°F Thermostats 1/4″X5 5/32 84″CAP No Indicator Light (DPST)

SKU: 337T-1403-007
In Stock

$170.55

In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

D1-2574-K  DOES NOT INCLUDE INDICATOR LIGHT

THE D1-2574-KP INCLUDES INDICATOR LIGHT # 337T-1404-007 D1-2574-KP

DPST switch turns up to 2 independent circuits on or off

Pilot Light: No

Control Range: 60°F to 250°F

Maximum Temperature Differential: 12°

Capillary Length: 84″

Sensing Bulb Diameter: 1/4″

Sensing Bulb Length: 5-5/32″

Capillary and Sensing Bulb Material: Copper

Enclosure: None

Mount Type: Unit Mount via (2x) 0.22″ DIA. mounting holes.

Height x Width: 4-3/32″ x 2-21/32″



Double-Pole, Single-Throw, Snap Action, Direct Acting, Bulb and Capillary Type Thermostats.

These temperature controls, with normally closed contacts, open on temperature rise, and are suitable for controlling the temperature of a wide variety of electrically heated liquids, solids, surfaces air and other gases.

These thermostats may be used in ovens, cleaning baths, platens, pipelines and sterilizing equipment, to name only a few.

The expansion and contraction of the fluid in the sensing bulb controls the temperature of these thermostats.

Resistive load per pole 120v -277v : 30 amps
Total resistive load 480v (D1 Models only ): 21amps



Additional information

Weight 5 lbs
Type

Double-Pole, Single Throw with ±5% Differential

length

84

Size

1/4 x 5 5/32

Enclosure

No Enclosure / No Pilot Light

Cross Reference

AR-214

Order Number

337T-1403-007
