5kw / 208v / 3ph W/Cutout UC5023C Chromalox 256508 Urn Heater

Description

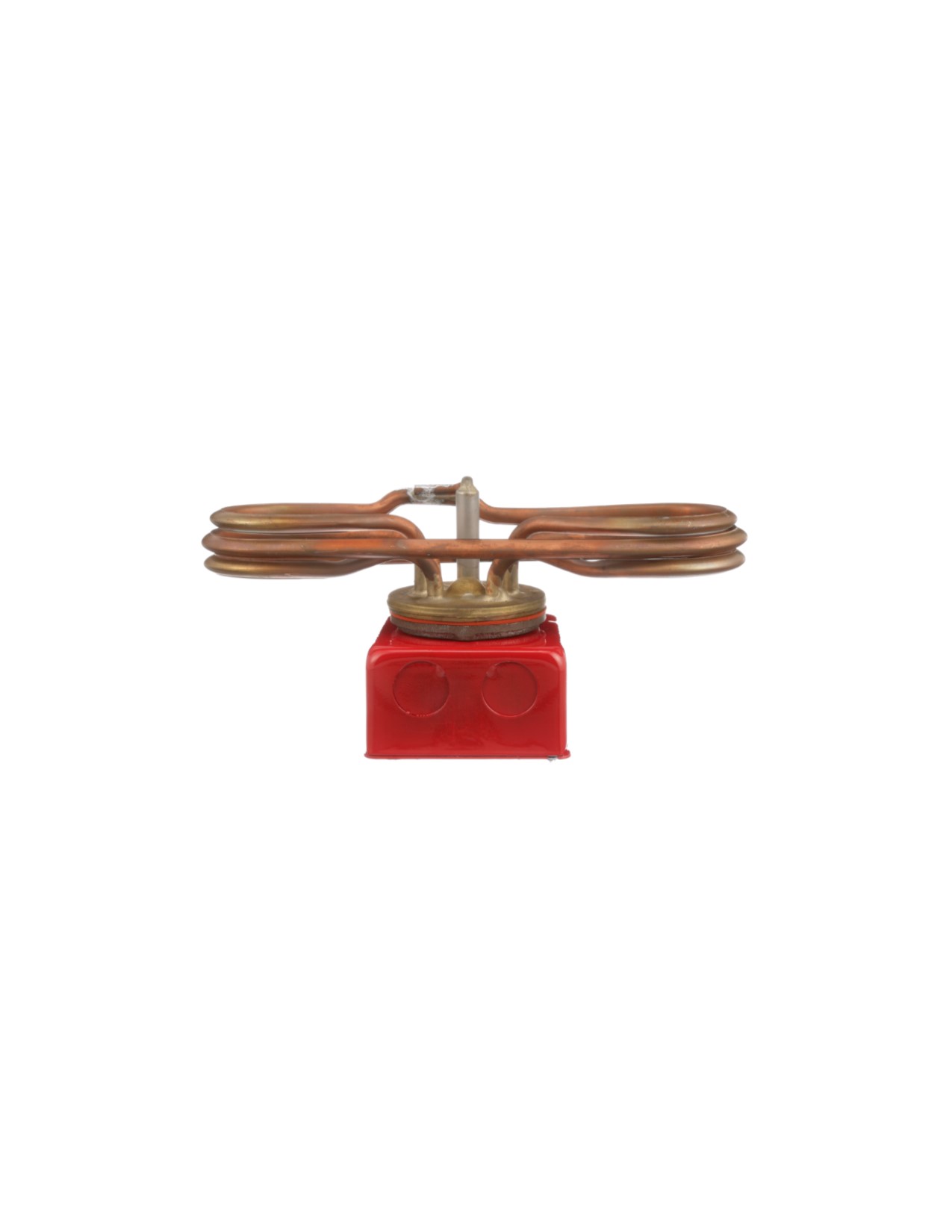

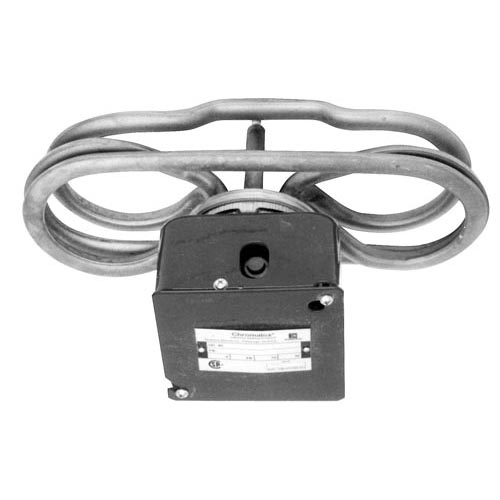

5kw 208v 3ph With Cutout URN Bottom Mounted Heater

IMMERSION HEATER, 4″ CONDUIT BOX
REQUIRES MINIMUN 2-3/8″ MOUNTING HOLE

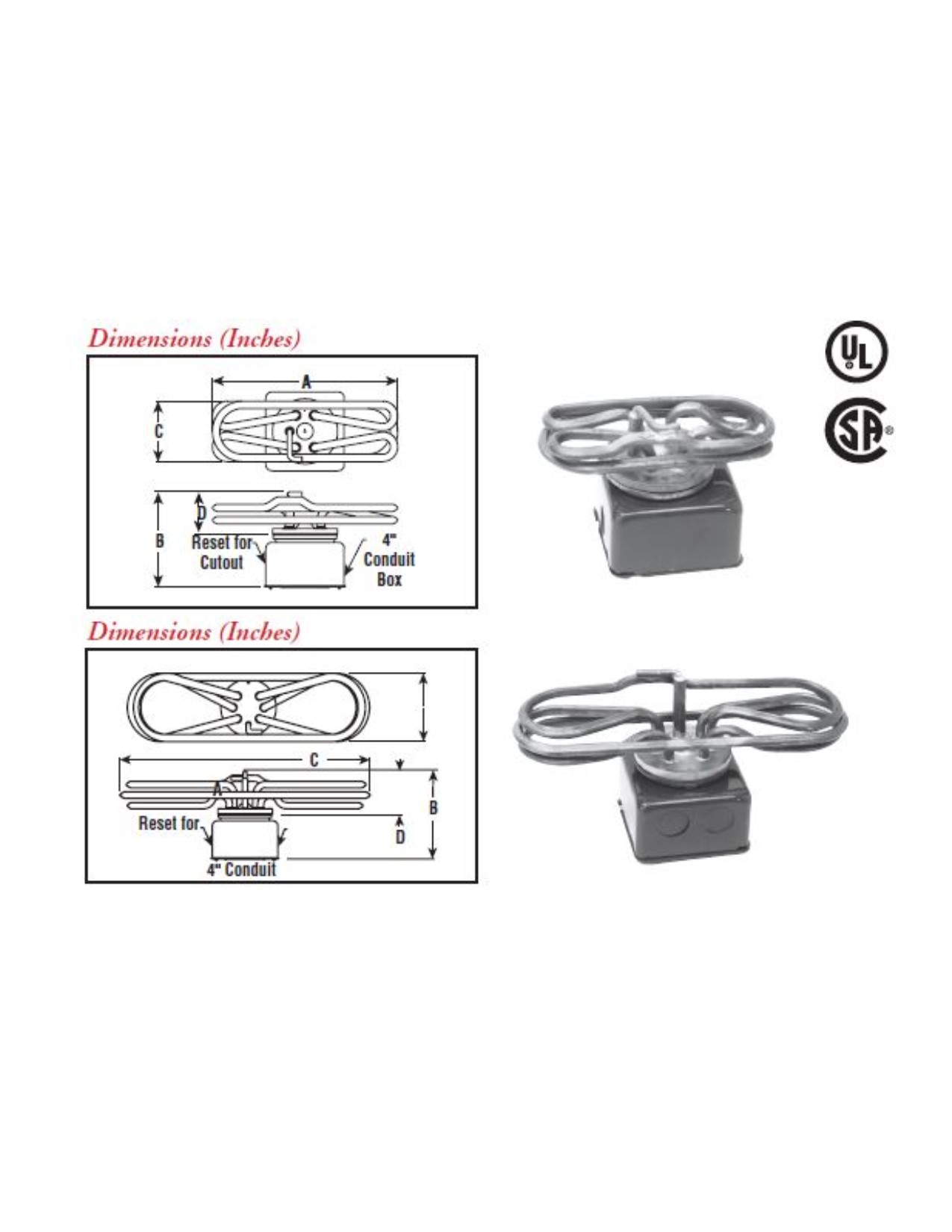

Dim. A: 11″

Dim. B:  5-13/32″

Dim. C: 3-1/8″

Dim D:  2-3/4″

Note: **3″ Min. Liquid Depth**

Other compatible part numbers:

• 045020008
• 256508
• UC5023C
• UC-5023-C
• UC-5023C
• UA5023C
• UA-5023-C
• 379A-2036-006
• TTUH-CO-503
• 34-1085

Food Equipment Water Applications

• Bottom Mounted
• Brass Flange
• Copper Sheath Elements
• Integral Low Liquid Thermal Cutout
• High Watt Densities
• Third-party certifications: UL Listed, CSA

Applications

• Coffee Urns
• Kettles
• Steam Tables
• Humidifiers

Note

Models above 25 amp or 240v single phase, and all 3 phase models require a suitable magnetic contactor to interrupt the heater load, with the cutout connected for pilot duty.
