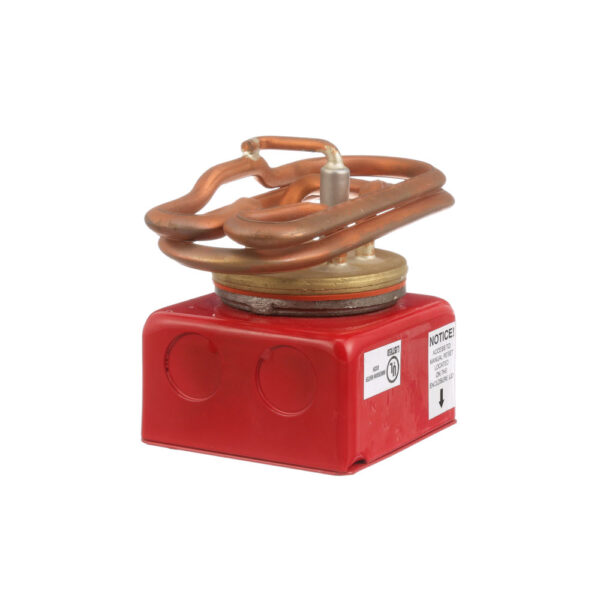

3kw / 240v / 1ph Urn Heater W/cutout UC3041C – Chromalox 256110

Description

IMMERSION HEATER, 4″ CONDUIT BOX, BOTTOM MOUNTED
REQUIRES MINIMUM 2-3/8″ MOUNTING HOLE.
HAS CUT OUT.
[ 240V 3000W 1PH ] [ 6-3/4″L X 3-1/16″ W X 2-1/8″D ]

Cross Reference

UC3041C, UC-3041-C, UA3041C, UA-3041-C, 379A-2030-015, 305629
EAGLE GROUP HOT FOOD TABLES SWT, WT SERIES

Food Equipment Water Applications

• Bottom Mounted
• Brass Flange
• Copper Sheath Elements
• Integral Low Liquid Thermal Cutout
• High Watt Densities
• 2-7/16″ Diameter Hole Required

Applications

• Coffee Urns
• Kettles
• Steam Tables
• Humidifiers

Note

Models above 25 amp or 240v single phase, and all 3 phase models require a suitable magnetic contactor to interrupt the heater load, with the cutout connected for pilot duty.

[hr]

• Eagle Metal Masters 305629
• UC3041C
• UC-3041-C
• UC-3041C
• UA3041C
• UA-3041C
• UA-3041-C
