4 1/2″ Square Flange Gasket – Garlock Blue-Gard 3000 – 1/16″ Thick (QTY 10)

Name: 4 1/2" Square Flange Gasket - Garlock Blue-Gard 3000 - 1/16" Thick (QTY 10)
SKU: 22M-1005-02-10pk
Availability: InStock

In stock

Original price was: $62.50.Current price is: $52.50.

Description

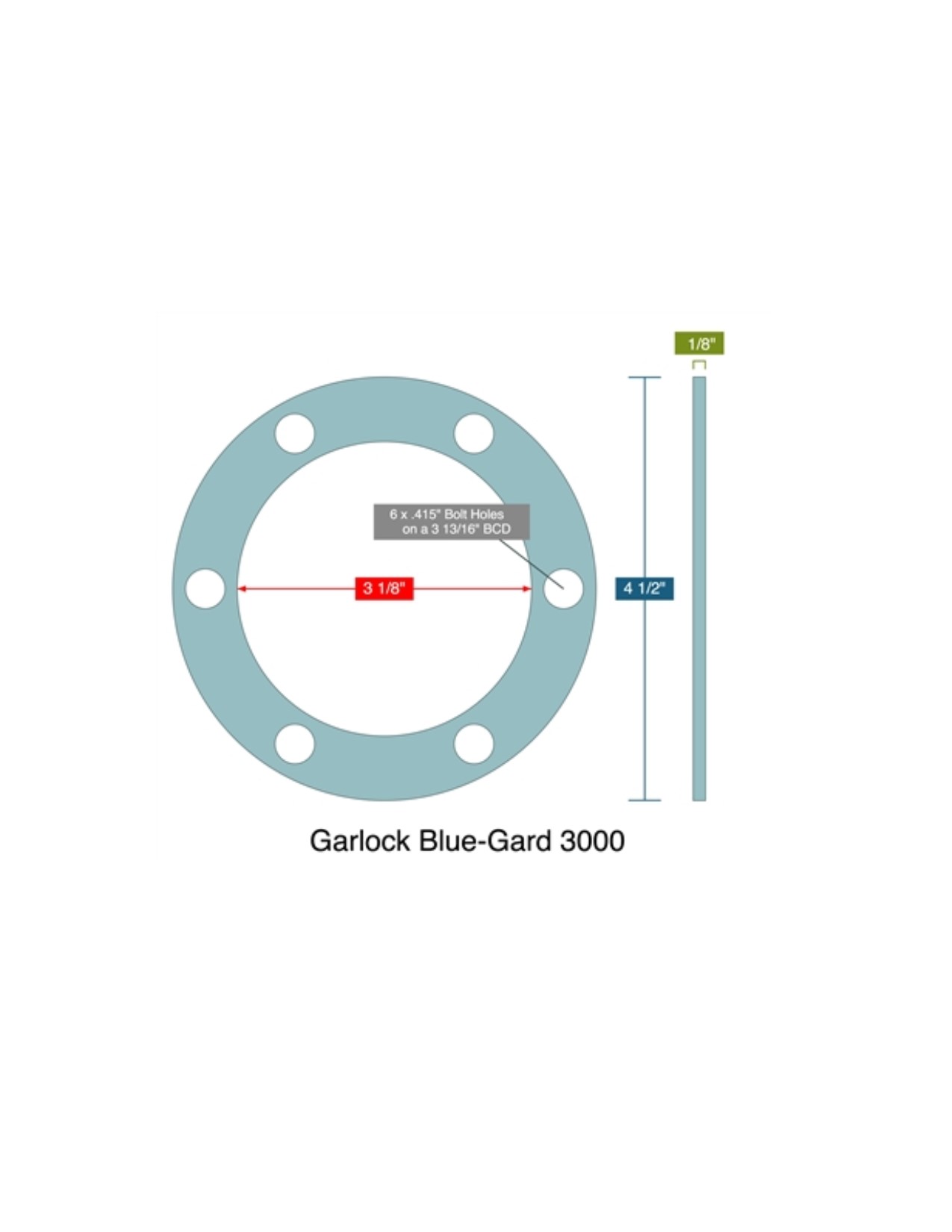

Garlock Blue-Gard 3000 – Full Face Gasket – 1/16″ Thick – 3.125″ ID – 4.50″ OD – 6 x .415″ Holes on a 3.8125″ Bolt Circle Diameter

Garlock Blue-Gard 3000	Physical Properties
Color	Blue
Composition	Aramid Fiber/NBR
Density	100 lb./cu. ft.
Service Temperature	-100 to 700° F
Service Pressure	0 to 1000 psi
Compressibility (after 1 hour at 210° F) – ASTM F36J	7 to 17 %
Recovery ASTM F36A Minimum	50 %
Creep Relaxation 7250 psi / 572 F	21 %
Thickness Increase ASTM F146 (ASTM Oil Fuel B) 70° to 85°F	0 to 10 %
Thickness Increase ASTM F146 (Oil IRM 903, 5Hr, 300°F)	0 to 15 %
Weight Increase ASTM F146 (ASTM Oil Fuel B, 5hrs, 70° – 85°F)	15 %
Service Temperature Continuous Max	400° F

Weight	2 lbs
Dimensions	9 × 3 × 3 in
